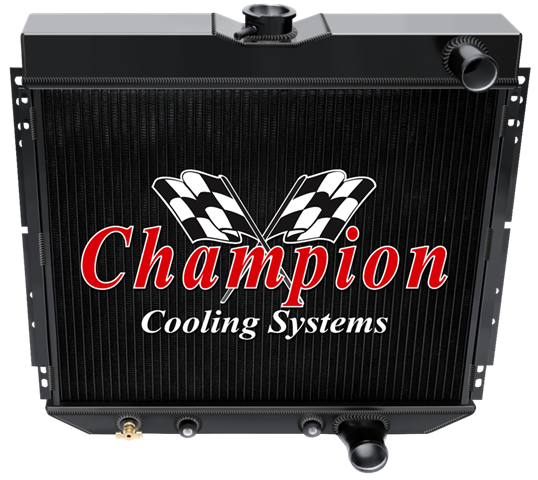

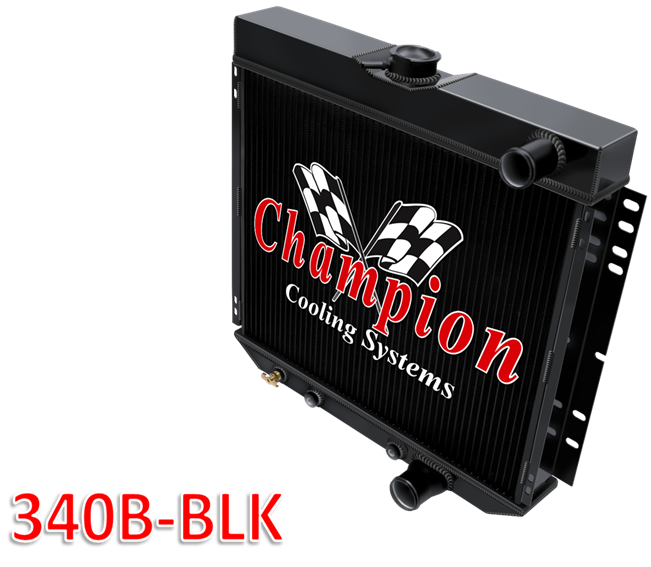

CORE DIM (H x W) |
OVERALL (H x W) |
HOSE LOCATIONS |
HOSE FITTINGS |
TRANS COOLER |
Fill Neck |
MOUNTING TYPE |
BRACKET SPECS |
| |
17 x 23 |
19 1/4 x 30 1/4 |
In - Driver, Out - Passenger |
In - 1 1/2, Out - 1 3/4 |
1/2-20 Straight Thread,
Inverted Flare |
Yes |
Bracket Mount |
Horizontal - 29 1/8 |
| |
|
|
|
|
|
|
|
|
| |
APPLICATION |
ENGINES |
|
|
3 ROW CORE THICKNESS |
3 ROW TANK THICKNESS |
| |
Chevy
Camaro (Small Block)
1967-1969 |
4.1L L6, 305ci V8, 307ci V8, 327ci V8, 350ci V8 |
|
|
B CORE 2 1/2" |
2 3/4" |
| |
Chevy Camaro (Big Block) 1967-1969 |
5.7L V8, 6.5L 396ci V8 |
|
|
|
|
| |
Pontiac Firebird/Trans AM 1967-69 |
5.2L/5.7L V8 |
|
|
2 ROW CORE THICKNESS |
2 ROW TANK THICKNESS |
| |
|
|
|
|
|
|
1 1/2" |
2 1/2" |
| |
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
4 ROW CORE THICKNESS |
4 ROW TANK THICKNESS |
| |
|
|
|
|
|
|
2 3/4" |
3 1/8" |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
