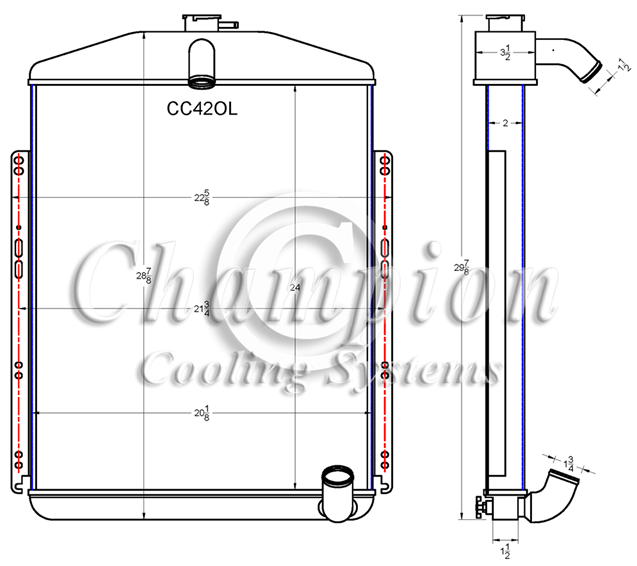

Core Dim (H x W)	Overall (H x W)	Hose Locations	Hose Fittings	Fill Neck	Trans Cooler	Mounting Specs	Mounting Type
	24" x 20 1/8"	29 7/8" x 22 5/8"	In - Center, Out - Passenger	In - 1 1/2", Out - 1 3/4"	Yes	N/A	21 3/4"	Brackets
	Application		Engines				3 Row Core Thickness	3 Row Tank Thickness
	1947 Oldsmobile E-47		-				2"	Upper- 3 1/2", Lower - 1 1/2"
	1947 Oldsmobile F-47		3.9L 238ci L6
	1947 Oldsmobile G-47		3.9L 238ci L6
	1947 Oldsmobile J-47		-
	1947 Oldsmobile L-47		4.2L 257ci L8
	1946 Oldsmobile Series 60		3.9L 238ci L6
	1942 - 1948 Oldsmobile Series 66		3.9L 238ci L6
	1942 - 1948 Oldsmobile Series 68		4.2L 257ci L8
	1942 - 1948 Oldsmobile Series 76		3.9L 238ci L6, 4.2L 257ci L8
	1942 - 1948 Oldsmobile Series 78		4.2L 257ci L8
	1946 Oldsmobile Series 90		-
	1942 - 1948 Oldsmobile Series 98		4.2L 257ci L8
