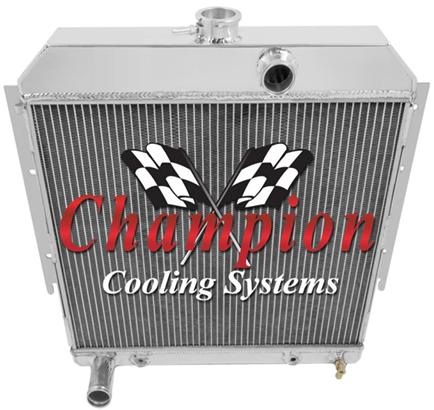

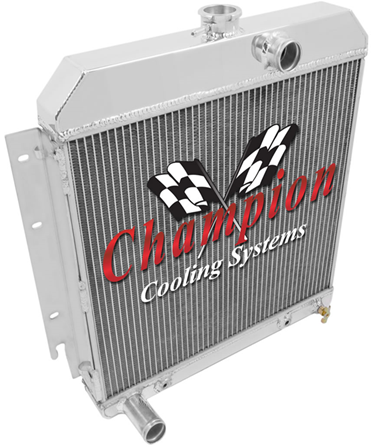

CORE DIM (H x W)

OVERALL (H x W)

HOSE LOCATIONS

HOSE FITTINGS

TRANS COOLER

BRACKET SPECS

MOUNTING TYPE

16 3/4 x 19

22 1/4 x 22 1/2

In - Off Set Passenger,Out - Driver

In - 1 1/2, Out - 1 1/2

1/8-27 NPT

Vert- 9 3/8 - Horizontal - 21 1/8

Bracket Mount

APPLICATION

ENGINE

3 ROW CORE THICKNESS

3 ROW TANK THICKNESS

Dodge Dart 1964

4.5L (273ci) V8

2 1/4"

2 1/2"

Plymouth Barracuda 1964

4.5L (273ci) V8

Plymouth Valiant 1964

4.5L (273ci) V8, 5.9L(361ci) V8

4 ROW CORE THICKNESS

4 ROW TANK THICKNESS

A Body

2 3/4"

3 1/8"
