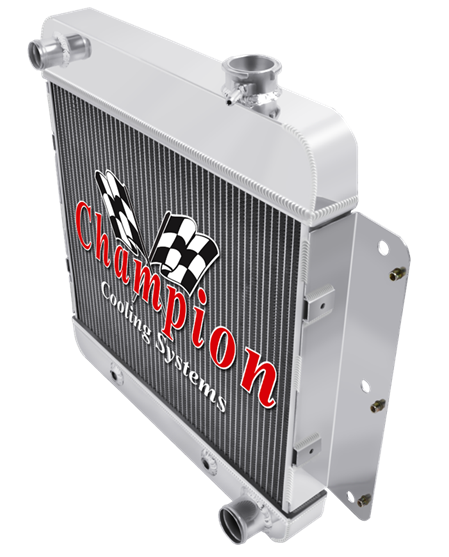

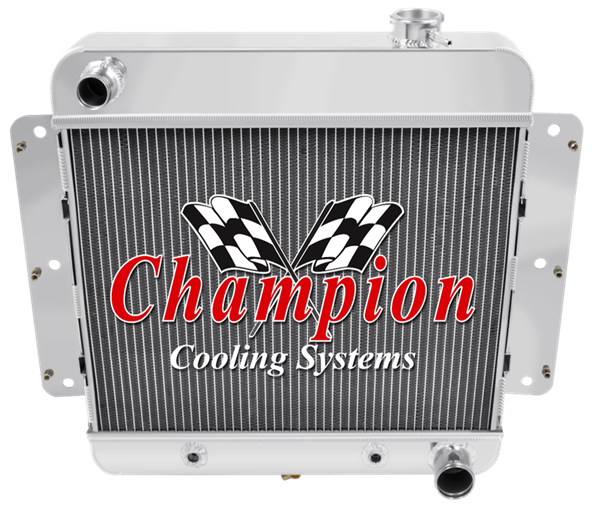

Core Dim (H x W) |
Overall (H x W) |
Hose Locations |
Hose Fittings |
Fill Neck |
Trans Cooler |
Mounting Specs |
Mounting Type |
|
14 1/8" x 18 3/8" |
20 5/8" x 24 1/2" |
In - Driver, Out - Passenger |
In - 1 1/2, Out - 1 3/4 |
Yes |
1/2-20 Straight Thread, Inverted Flare |
23 3/4" |
Bracket |
|
|
Application |
Engines |
|
3 Row Core Thickness |
3 Row Tank Thickness |
|
1962 - 1967
Chevy II Base |
V8 Conversion (See Notes) |
|
2 1/4" |
2 1/2" |
|
1962 - 1967
Chevy II Nova |
V8 Conversion (See Notes) |
|
|
|
|
1964 - 1967
Chevy II Nova SS |
V8 Conversion (See Notes) |
|
|
|
|
|
Notes |
|
1) AE/CC255 does not fit six
cylinders motors.The radiator will fit in the car but the fan to core
clearance is too close and the fan will go into the core and tanks. AE/CC255
is designed as a V8 Conversion for small displacement V8's or they have
shortened there inline 6 water pump shaft. |
|
|
2) EC255-6
is the part number to use for 6 cylinder motors since they are longer and
need more room. |
|
|
|
|
|
|
|
|
|
|
