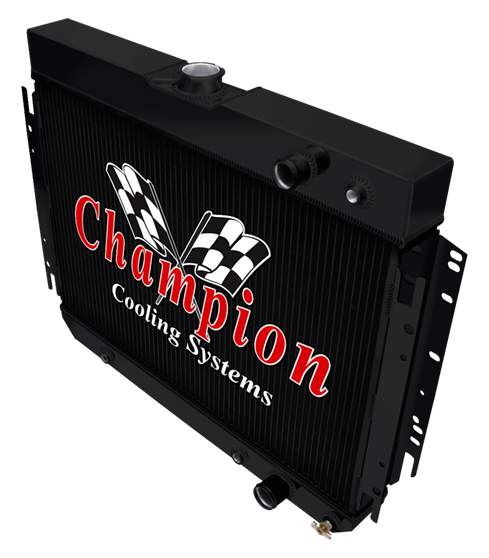

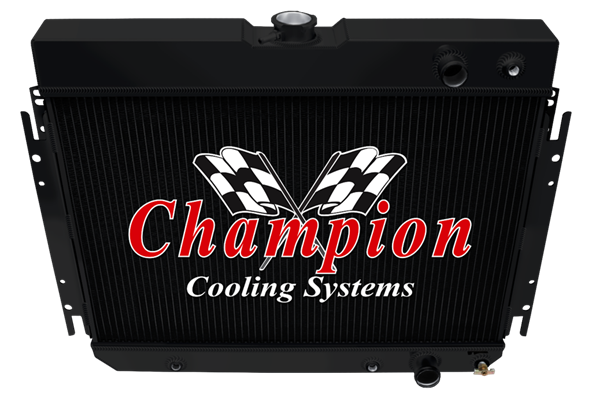

Core Dim (H x W) |
Overall (H x W) |
Hose Locations |
Hose Fittings |
Fill Neck |
Trans Cooler |
Mounting Specs |
Mounting Type |
|
16" x 24 3/4" |
21 7/8" x 27
7/8" |
In - Passenger, Out
- Passenger |
In - 1 1/4",
Out 1 1/2" |
Yes |
1/2-20 Straight
Thread, Inverted Flare |
27" |
Brackets |
|
|
|
|
|
|
|
|
|
|
Application |
Engines |
|
|
|
3 Row Core Thickness |
3 Row Tank Thickness |
|
1963 - 1968 Chevrolet Bel Air |
3.8L 230ci L6, 4.1L 250ci L6 |
|
|
|
B Core 2 1/2" |
2 3/4" |
|
4.6L 283ci V8 |
|
|
|
|
|
|
1963 - 1968 Chevrolet Biscayne |
3.8L 230ci L6, 4.1L 250ci L6 |
|
|
|
|
|
|
1966 - 1968 Chevrolet Caprice |
4.1L 250ci L6, 4.6L
283ci V8 |
|
|
|
|
|
|
5.3L 327ci V8, 5.4L 327ci V8 |
|
|
|
|
|
|
1964 - 1967 Chevrolet Chevelle |
4.6L 283ci V8, 6.5L 396ci V8 |
|
|
|
|
|
|
1964 - 1967 Chevrolet El Camino |
3.2L 194ci L6, 3.8L
230ci L6 |
|
|
|
|
|
|
4.1L 250ci L6, 4.6L 283ci V8 |
|
|
|
|
|
|
5.3L 327ci V8, 6.5L 396ci V8 |
|
|
|
|
|
|
1963
- 1968 Chevrolet Impala |
3.8L 230ci L6, 4.1L 250ci L6 |
|
|
|
|
|
|
4.6L 283ci V8, 5.3L 327ci V8 |
|
|
|
|
|
|
5.4L 327ci V8 |
|
|
|
|
|
|
Notes:
Designed for LS Motor Swap |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
