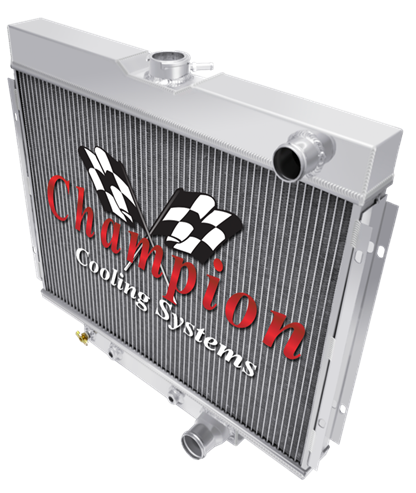

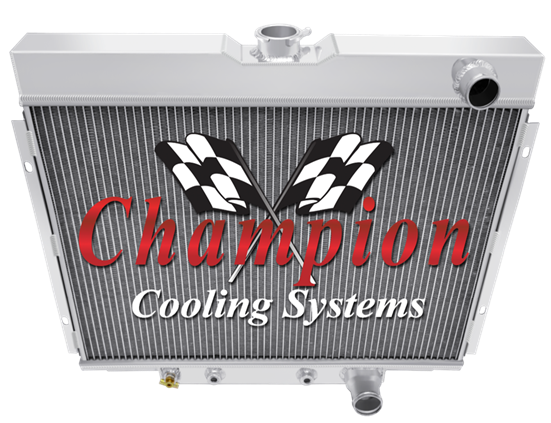

CORE DIM (H x W) |
OVERALL (H x W) |
HOSE LOCATIONS |
HOSE FITTINGS |
TRANS COOLER |
FILL NECK |
MOUNTING TYPE |
BRACKET SPECS |
|
|
|
|
|
16 3/8 x 23 7/8 |
21 1/2 x 25 3/8 |
In -
Passenger, Out - Passenger |
In - 1 1/2, Out - 1 3/4 |
1/8-27 NPT |
Yes |
Saddle Mount |
Horizontal - 24 3/4 |
|
|
|
|
|
|
|
|
|
APPLICATION |
ENGINES |
|
NOTE: VERIFY HOSE CONFIGURATIONS AND CORE
SIZE |
|
2 ROW CORE THICKNESS |
2 ROW TANK THICKNESS |
|
|
|
|
|
Ford
Mustang - 1967 - 1970 |
ALL |
|
|
1 1/2" |
2 1/2" |
|
|
|
|
|
Ford
Fairlane - 1969 |
ALL |
|
|
|
|
|
Ford
Ranchero - 1969 |
ALL |
|
3 ROW CORE THICKNESS |
3 ROW TANK THICKNESS |
|
|
|
|
|
Mercury
Cougar/XR7 - 1967 - 1970 |
ALL |
|
2 1/4" |
2 1/2" |
|
|
|
|
|
|
|
|
|
4 ROW CORE THICKNESS |
4 ROW TANK THICKNESS |
|
|
|
|
|
2 3/4" |
3 1/8" |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
