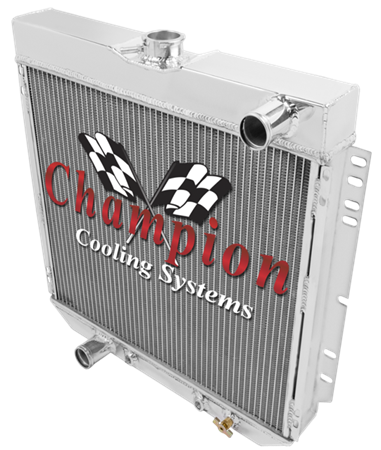

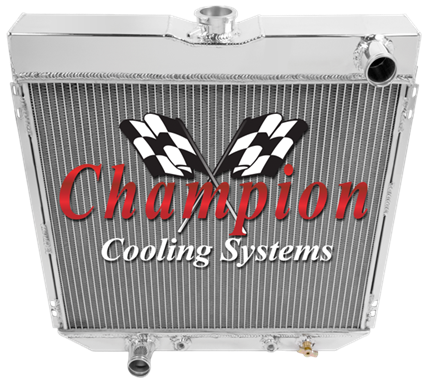

CORE DIM (H x W)

OVERALL (H x W)

HOSE LOCATIONS

HOSE FITTINGS

TRANS COOLER

FILL NECK

MOUNTING TYPE

BRACKET SPECS

16 3/8 x 20 1/4

21 1/8 x 22 1/8

In - Passenger, Out - Driver

In - 1 1/2, Out - 1 1/2

1/8-27 NPT

Yes

Bracket Mount

Vert - 12 1/2, Horizontal - 21

APPLICATION

ENGINES

CAN BE USED AS DPI #260

3 ROW CORE THICKNESS

3 ROW TANK THICKNESS

1963-1969 Ford Fairlane

2.8L 170ci L6, 3.3L 200ci L6,

2 1/2"

3"

3.6L 221ci V8, 4.1L 250ci L6,

4.3L 260ci V8, 4.7L 289ci V8,

NOTE: VERIFY HOSE CONFIGURATIONS AND CORE SIZE

2 ROW CORE THICKNESS

2 ROW TANK THICKNESS

5.0L 302ci V8, 5.8L 351ci V8,

1 1/2"

2 3/8"

5.8L 352ci V8, 6.4L 390ci V8,

7.0L 427ci V8, 7.0L 428ci V8

4 ROW CORE THICKNESS

4 ROW TANK THICKNESS

1966-1970 Ford Falcon

2.8L 170ci L6, 3.3L 200ci L6,

2 3/4"

3 1/8"

4.1L 250ci L6, 4.7L 289ci V8,

5.0L 302ci V8, 5.8L 351ci V8,

7.0L 429ci V8

1970-1977 Ford Maverick

2.8L 170ci L6, 3.3L 200ci L6,

4.1L 250ci L6, 5.0L 302ci V8

1967-1970 Ford Mustang

3.3L 200ci L6, 4.1L 250ci L6,

4.7L 289ci V8, 5.0L 302ci V8,

5.8L 351ci V8, 6.4L 390ci V8,

7.0L 427ci V8, 7.0L 428ci V8,

7.0L 429ci V8

1968-1969 Ford Torino

3.3L 200ci L6, 4.1L 250ci L6,

5.0L 302ci V8, 5.8L 351ci V8,

6.4L 390ci V8, 7.0L 427ci V8,

7.0L 428ci V8

1966-1973 Mercury Comet

2.8L 170ci L6, 3.3L 200ci L6,

4.1L 250ci L6, 4.7L 289ci V8,

5.0L 302ci V8, 6.4L 390ci V8,

7.0L 427ci V8, 7.0L 428ci V8

1967-1970 Mercury Cougar

4.7L 289ci V8, 5.0L 302ci V8,

5.8L 351ci V8, 6.4L 390ci V8,

7.0L 427ci V8, 7.0L 428ci V8,

7.0L 429ci V8
