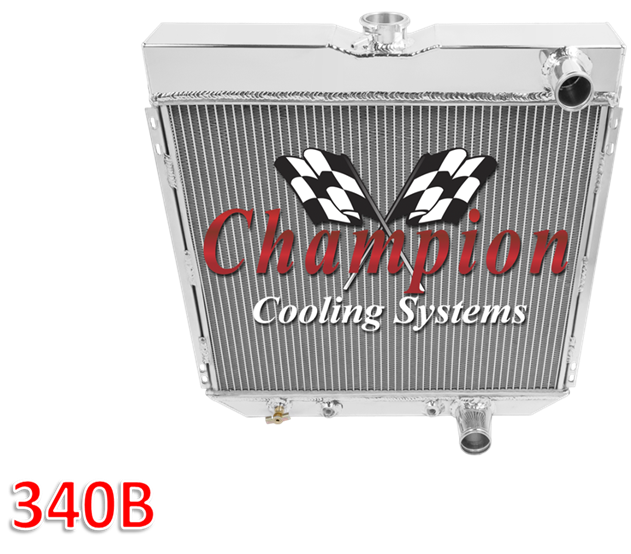

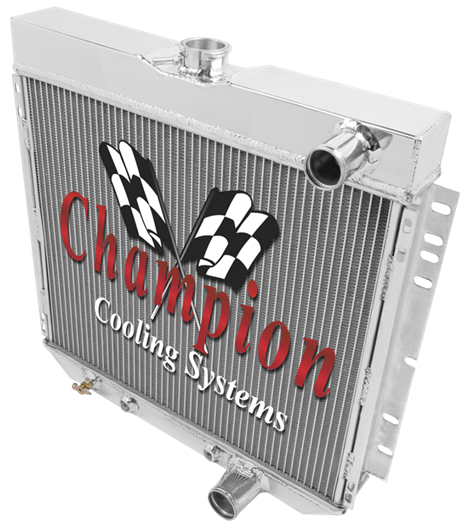

CORE DIM (H x W) |
OVERALL (H x W) |
HOSE LOCATIONS |
HOSE FITTINGS |
TRANS COOLER |
FILL NECK |
MOUNTING TYPE |
BRACKET SPECS |
|
|
| |
16 3/8 x 20 1/4 |
21 1/8 x 22 |
In - Passenger, Out - Passenger |
In 1 -1/2 Out 1- 3/4 |
1/8-27 NPT |
Yes |
BRACKET MOUNT |
Vert- 12 3/4" Horizontal -
21 |
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
APPLICATION |
ENGINES |
|
NOTE: 20" Wide Core with
Inlet and Outlet on passenger side. See Part# 339 if your application has the
Outlet on the drivers side. See Part# 338 if you need a 24" Wide Core
with Inlet and Outlet on passenger side. |
|
3 ROW CORE THICKNESS |
3 ROW TANK THICKNESS |
|
|
| |
1964-1968 Ford Country Sedan |
2.8L 170ci L6, 3.3L 200ci L6, |
|
|
B CORE 2 1/2" |
3" |
|
|
| |
3.6L 223ci L6, 3.9L 240ci L6, |
|
|
|
|
|
|
| |
4.3L 260ci V8, 4.7L 289ci V8, |
|
|
4 ROW CORE THICKNESS |
4 ROW TANK THICKNESS |
|
|
| |
5.0L 302ci V8, 5.8L 352ci V8, |
|
|
2 3/4" |
3 1/8" |
|
|
| |
6.4L 390ci V8, 7.0L 427ci V8, |
|
|
|
|
|
|
| |
7.0L 428ci V8 |
|
|
2 ROW CORE THICKNESS |
|
|
|
| |
1964-1968
Ford Country Squire |
2.8L 170ci L6, 3.3L 200ci L6, |
|
|
1 1/2" |
|
|
|
| |
3.6L 223ci L6, 3.9L 240ci L6, |
|
|
|
|
|
|
|
|
|
| |
4.3L 260ci V8, 4.7L 289ci V8, |
|
|
|
|
|
|
|
|
|
| |
5.0L 302ci V8, 5.8L 352ci V8, |
|
|
|
|
|
|
|
|
|
| |
6.4L 390ci V8, 7.0L 427ci V8, |
|
|
|
|
|
|
|
|
|
| |
7.0L 428ci V8 |
|
|
|
|
|
|
|
|
|
| |
1963-1969
Ford Fairlane |
2.8L 170ci L6, 3.3L
200ci L6, |
|
|
|
|
|
|
|
|
|
| |
3.6L 221ci V8, 4.1L 250ci L6, |
|
|
|
|
|
|
|
|
|
| |
4.3L 260ci V8, 4.7L 289ci V8, |
|
|
|
|
|
|
|
|
|
| |
5.0L 302ci V8, 5.8L 351ci V8, |
|
|
|
|
|
|
|
|
|
| |
5.8L 352ci V8, 6.4L 390ci V8, |
|
|
|
|
|
|
|
|
|
| |
7.0L 427ci V8, 7.0L 428ci V8 |
|
|
|
|
|
|
|
|
|
| |
1966-1970
Ford Falcon |
2.8L 170ci L6, 3.3L
200ci L6, |
|
|
|
|
|
|
|
|
|
| |
4.1L 250ci L6, 4.7L 289ci V8, |
|
|
|
|
|
|
|
|
|
| |
5.0L 302ci V8, 5.8L 351ci V8, |
|
|
|
|
|
|
|
|
|
| |
7.0L 429ci V8 |
|
|
|
|
|
|
|
|
|
| |
1964-1967
Ford Galaxie |
3.6L 223ci L6, 3.9L
240ci L6, |
|
|
|
|
|
|
|
|
|
| |
4.3L 260ci V8, 4.7L 289ci V8, |
|
|
|
|
|
|
|
|
|
| |
5.8L 352ci V8, 6.4L 390ci V8, |
|
|
|
|
|
|
|
|
|
| |
7.0L 427ci V8, 7.0L 428ci V8 |
|
|
|
|
|
|
|
|
|
| |
1967-1968
Ford LTD |
3.9L 240ci L6, 4.7L
289ci V8, |
|
|
|
|
|
|
|
|
|
| |
5.0L 302ci V8, 5.8L 352ci V8, |
|
|
|
|
|
|
|
|
|
| |
6.4L 390ci V8, 7.0L 427ci V8, |
|
|
|
|
|
|
|
|
|
| |
7.0L 428ci V8 |
|
|
|
|
|
|
|
|
|
| |
1967-1970
Ford Mustang |
3.3L 200ci L6, 4.1L
250ci L6, |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
4.7L 289ci V8, 5.0L 302ci V8, |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
5.8L 351ci V8, 6.4L 390ci V8, |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
7.0L 427ci V8, 7.0L 428ci V8, |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
7.0L 429ci V8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
1968-1969 Ford Torino |
3.3L 200ci L6, 4.1L
250ci L6, |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
5.0L 302ci V8, 5.8L 351ci V8, |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
6.4L 390ci V8, 7.0L 427ci V8, |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
7.0L 428ci V8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
1967-1968
Mercury Cougar |
4.7L 289ci V8, 5.0L 302ci V8, |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
6.4L 390ci V8, 7.0L 427ci V8, |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
7.0L 428ci V8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
