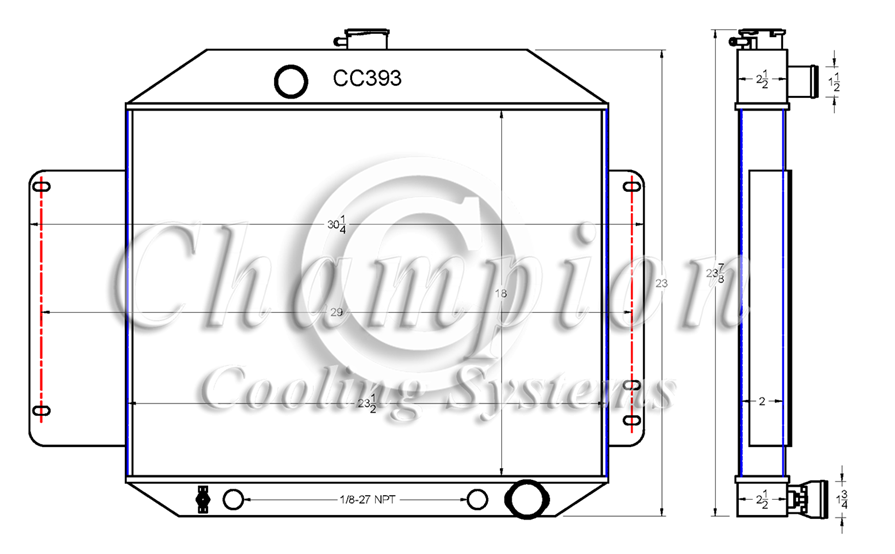

Core Dim (H x W) |
Overall (H x W) |
Hose Locations |
Hose Fittings |
Fill Neck |
Trans Cooler |
Mounting Specs |
Mounting Type |
|
18" x 23 1/2" |
23 7/8" x 30
1/4" |
In - Offset Driver,
Out - Passenger |
In - 1 1/2",
Out - 1 3/4" |
Yes |
1/8-27 NPT |
29" |
Bracket |
|
|
|
|
|
|
|
|
|
|
Application |
Engines |
|
|
|
3 Row Core Thickness |
3 Row Tank Thickness |
|
1969 - 1974 Ford E-100 Econoline |
3.9L 240ci L6, 4.9L 300ci L6 |
|
|
|
2" |
2 1/2" |
|
5.0L 302ci V8 |
|
|
|
|
|
|
1969 - 1974 Ford E-200 Econoline |
3.9L 240ci L6, 4.9L
300ci L6 |
|
|
|
|
|
|
5.0L 302ci V8 |
|
|
|
|
|
|
1969 - 1974 Ford E-300 Econoline |
3.9L 240ci L6, 4.9L
300ci L6 |
|
|
|
|
|
|
5.0L 302ci V8 |
|
|
|
|
|
|
1966 - 1977
Ford F-100 |
3.9L 240ci L6, 4.9L
300ci L6 |
|
|
|
|
|
|
1975 - 1977
Ford F-150 |
4.9L 300ci L6 |
|
|
|
|
|
|
1966 - 1977
Ford F-250 |
3.9L 240ci L6, 4.9L 300ci L6 |
|
|
|
|
|
|
1966 - 1977
Ford F-350 |
3.9L 240ci L6, 4.9L 300ci L6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
