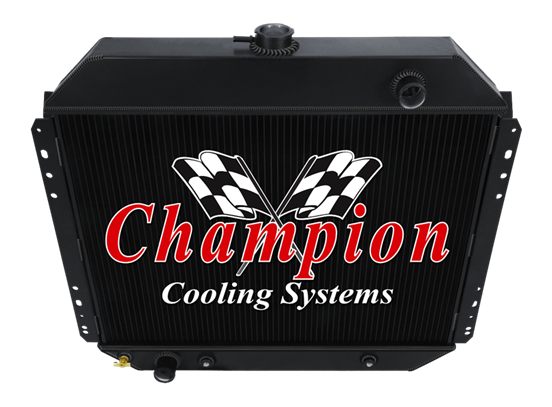

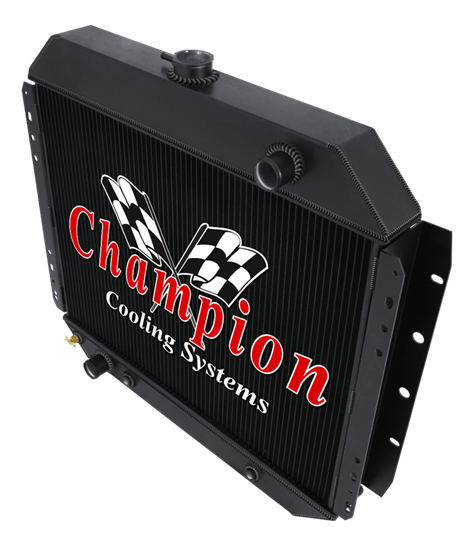

Core Dim (H x W) |
Overall (H x W) |
Hose Locations |
Hose Fittings |
Fill Neck |
Trans Cooler |
Mounting Specs |
Mounting Type |
|
|
18 7/8" x 25 1/2" |
26 1/8" x 29
1/2" |
In - Passenger, Out
- Driver |
in - 1 1/2", Out - 1 1/2" |
Yes |
1/8-27 NPT |
28 1/2" |
Bracket |
|
|
|
|
|
|
|
|
|
|
|
|
|
Application |
Engines |
|
Note: Radiator mounting brackets on grill
side of radiator. |
|
|
1978 - 1979 Ford Bronco |
5.8L 351ci V8, 6.6L 400ci V8 |
|
|
|
1968 - 1979 Ford F-100 |
5.0L 302ci V8, 5.8L 351ci V8, 5.9L 360ci V8, 6.4L 390ci v8, 6.6L 400ci
V8 |
|
|
|
|
|
|
1975 - 1979 Ford F-150 |
5.0L 302ci V8, 5.8L 351ci V8, 5.9L 360ci V8, 6.4L 390ci v8, 6.6L 400ci
V8 |
|
|
3 Row Core Thickness |
3 Row Tank Thickness |
|
|
1968 - 1979 Ford F-250 |
5.0L 302ci V8, 5.8L 351ci V8, 5.9L 360ci V8, 6.4L 390ci v8, 6.6L 400ci
V8 |
|
|
2 1/2" |
2 7/8" |
|
|
1968 - 1979 Ford F-350 |
5.0L 302ci V8, 5.8L 351ci V8, 5.9L 360ci V8, 6.4L 390ci v8, 6.6L 400ci
V8 |
|
|
|
|
|
|
1975 Ford F-500 |
5.9L 360ci V8, 6.4L 390ci V8 |
|
|
|
|
|
|
Note: Designed for Coyote Engine Swap. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
