CORE DIM (H x W) |
OVERALL (H x W) |
HOSE LOCATIONS |
HOSE FITTINGS |
FILL NECK |
TRANS COOLER |
MOUNTING TYPE |
| |
17 x 27 1/2 |
19 1/2 x 32 |
In - Driver, Out - Passenger |
In - 1 1/2, Out - 1 9/16 |
Yes |
1/2-20 Straight Thread,
Inverted Flare |
Saddle Mount |
| |
|
|
|
|
|
|
|
| |

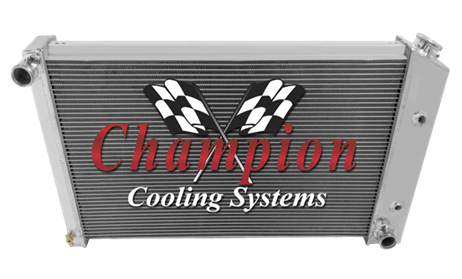

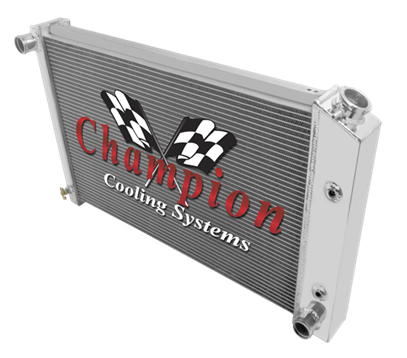

NOTE: THIS IS A 4 ROW DPI 573.
SLIGHT MODIFICATIONS OF STOCK SADDLE MOUNTS MAY BE REQUIRED |
|
|
4 ROW CORE THICKNESS |
4 ROW TANK THICKNESS |
| |
|
|
2 3/4" |
3 1/4" |
| |
|
|
|
|
| |
|
|
|
|
|
|
|
| |
APPLICATION |
ENGINES |
|
|
|
|
| |
Pontiac Firebird / TRANS AM - 1970-76 |
350ci V8 |
|
|
|
|
| |
Pontiac Firebird / TRANS AM - 1977 |
350ci V8, 400ci V8, 403ci V8 |
|
|
|
|
| |
Pontiac Firebird / TRANS AM - 1978 |
400ci V8, 403ci V8 |
|
|
|
|
| |
Pontiac Firebird / TRANS AM - 1979 |
305ci V8 |
|
|
|
|
| |
Pontiac Firebird / TRANS AM - 1980 |
301ci V8, 305ci V8 |
|
|
|
|
| |
Pontiac Firebird / TRANS AM - 1981 |
267ci V8, 301ci V8, 305ci V8 |
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
