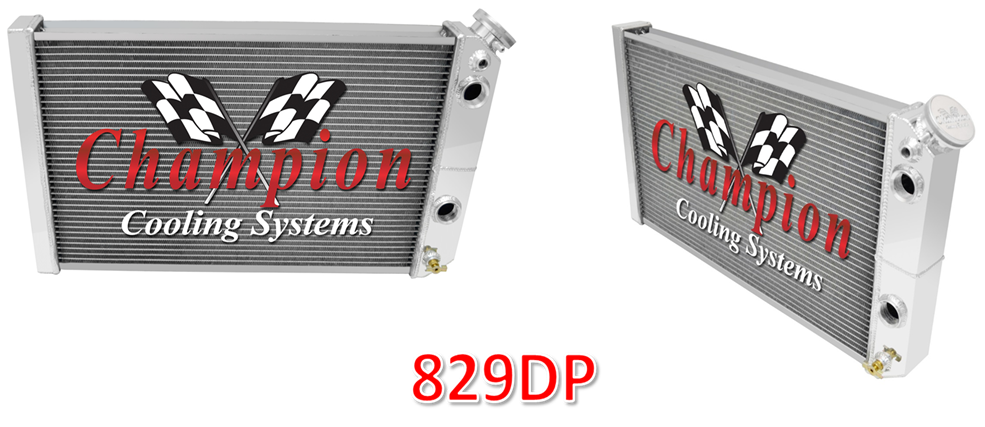

LS Engine Swap And Dual Pass for All Engines Below | |||||||||
CORE DIM (H x W) | OVERALL (H x W) | HOSE LOCATIONS | HOSE FITTINGS | FILL NECK | TRANSCOOLER | MOUNTING TYPE | |||
14 1/2" x 23 5/8" | 16 5/8 x 29 3/4 | In-Passenger, Out-Passenger | In/Out: -16ORB (Female) | Yes | No | Saddle Mount | |||
APPLICATION | ENGINES | 3 ROW TANK THICKNESS | 3 ROW CORE THICKNESS | ||||||
84-90 CORVETTE | SMALL BLOCK V8 | 2 1/2" | 2" | ||||||
CHEVY S10 | V8 CONVERSION | ||||||||
