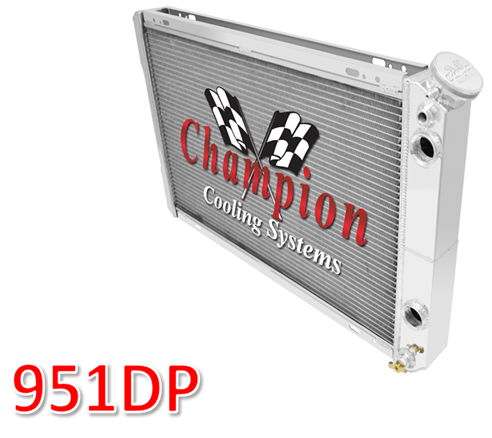

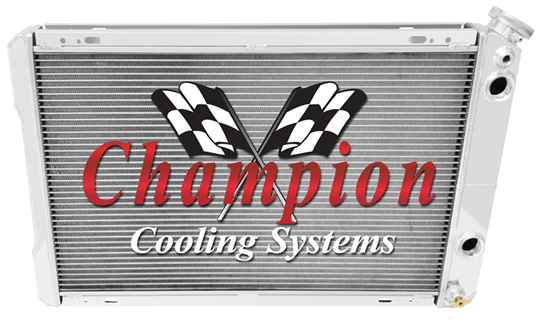

LS Engine Swap And Dual Pass for
All Engines Below |
|
|
|
|
|
CORE DIM (H x W) |
OVERALL (H x W) |
HOSE LOCATIONS |
HOSE FITTINGS |
MOUNTING TYPE |
SHROUD BRACKET |
|
17 1/4 x 26 1/4 |
20 x 32 |
In-Passenger, Out-Passenger |
In/Out: -16ORB (Female) |
Saddle Mount |
Vert - 22 3/8 Horizontal - 17 1/2 |
|
|
APPLICATION |
ENGINES |
|
3 ROW CORE THICKNESS |
3 ROW TANK THICKNESS |
|
Pontiac Firebird/ Trans Am -
1982-84 |
2.5l L4, 305ci V8 |
|
2 1/4" |
2 1/2" |
|
Pontiac Firebird/ Trans Am -
1985-86 |
305ci V8 |
|
|
Pontiac Firebird/ Trans Am -
1987-88 |
305ci V8, 350ci V8 |
|
|
Pontiac Firebird/ Trans Am -
1989-92 |
3.8l V6, 305ci V8, 350ci V8 |
|
|
Chevy Camaro - 1982-84 |
2.5l L4, 305ci V8 |
|
|
Chevy Camaro - 1985-86 |
305ci V8 |
|
|
Chevy Camaro - 1987-89 |
305ci V8, 350ci V8 |
|
|
Chevy Camaro - 1990-92 |
3.1l V6, 305ci V8, 350ci V8 |
|
|
|
|
|
|
|
|
