CORE DIM (H x W)
OVERALL (H x W)
HOSE LOCATIONS
HOSE FITTINGS
FILL NECK
TRANS COOLER
MOUNTING TYPE
17 1/2 x 17 1/2
22 3/4 x 19 1/8
In - Driver, Out - Passenger
In - 1 1/2, Out - 1 3/4
Yes
1/2-20 Straight Thread, Inverted Flare
OEM
APPLICATION
Engine
3 Row and 2 Row Tank Thickness The Same

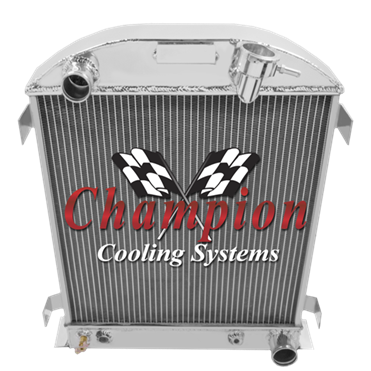

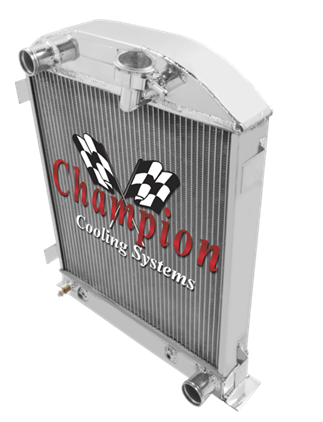

32 Ford Chopped
w/ Chevy/Mopar Config
3 ROW CORE THICKNESS
3 ROW TANK THICKNESS
2 1/2"
3"
2 ROW CORE THICKNESS
2 ROW TANK THICKNESS
1 1/2"
3"
