Core Dim (H x W) |
Overall (H x W) |
Hose Locations |
Hose Fittings |
Fill Neck |
Trans Cooler |
Mounting Specs |
Mounting Type |
|
11 1/8 x 31 |
13 1/2 x 36 |
In - Passenger, Out - Driver |
In - 1 1/4, Out - 1 1/2 |
Yes |
5/8-18 Straight Thread, Inverted Flare |
N/A |
OEM Mount |
|
|
APPLICATION |
ENGINE |
|
2 ROW CORE THICKNESS |
2 ROW TANK THICKNESS |
|

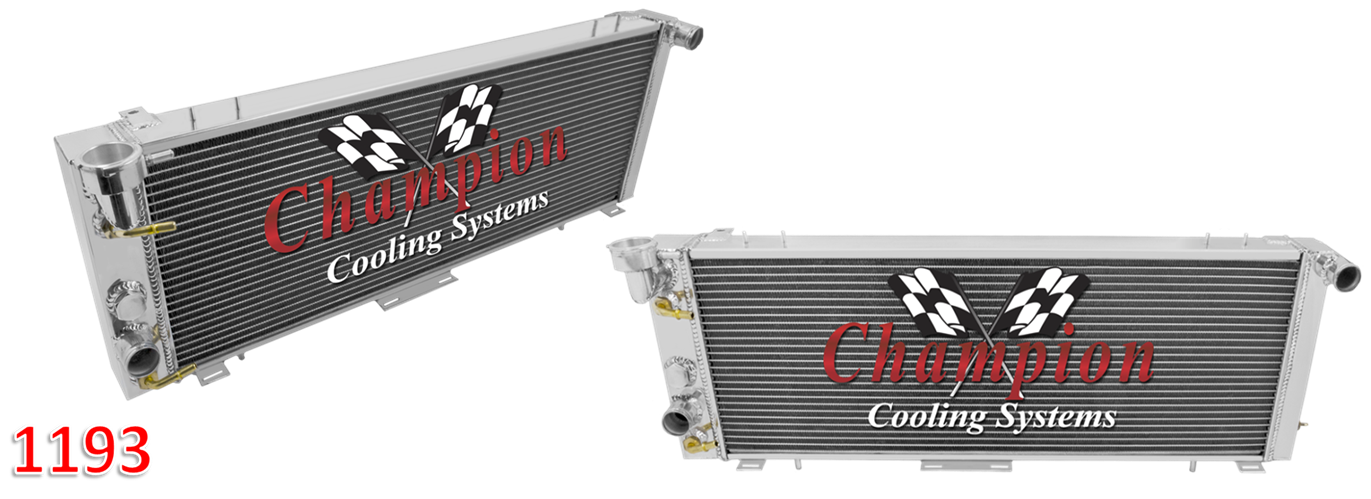

Jeep Comanche 1991 - 1992 |
2.5L 150ci In-Line 4, 4.0L 242ci In-Line 6 |
|
1 1/2" |
2 1/2" |
|
Jeep Cherokee 1991 - 2001 |
2.5L 150ci In-Line 4, 4.0L 242ci In-Line 6 |
|
|
|
Will Fit these Vehicles as an Open System
Conversion |
|
|
|
|
Application |
Engines |
|
|
1984 - 1990
Jeep Cherokee |
2.8L 173ci V6. 4.0L 242ci In-Line 6 |
|
|
1987 - 1990
Jeep Comanche |
4.0L 242ci In-Line 6 |
|
|
1984 - 1990
Jeep Wagoneer |
2.8L 173ci V6. 4.0L 242ci In-Line 6, 4.6L 282ci In-Line 6 |
|
|
|
|
|
|
|
|
|
|
|
