Core Dim (H x W) |
Overall (H x W) |
Hose Locations |
Hose Fittings |
Fill Neck |
Trans Cooler |
Mounting Specs |
Mounting Type |
|
|

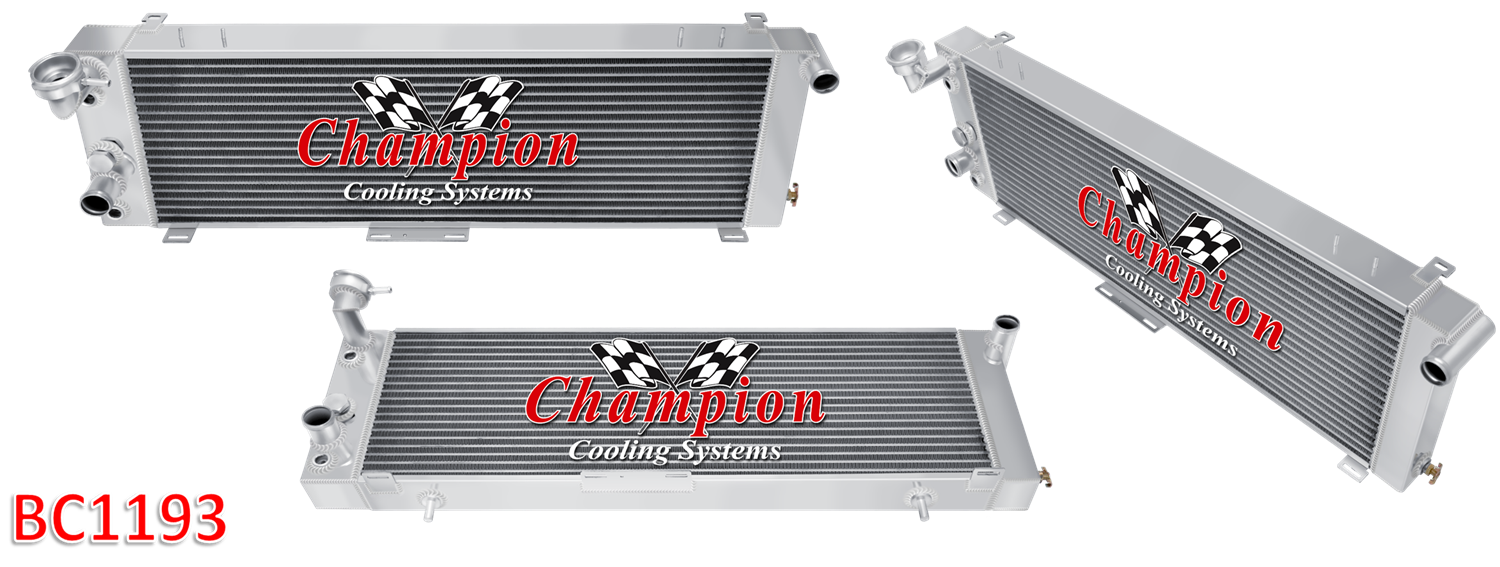

10 3/4" x 30 1/8" |
13 5/8" x 36" |
In - Passenger, Out - Driver |
In - 1 1/4" x Out - 1 1/2" |
Yes |
5/8 - 18 Straight Thread, Inverted Flair |
N/A |
OEM Mount |
|
|
|
|
|
|
|
|
|
|
|
|
Application |
Engines |
|
|
1 Row Core Thickness |
1 Row Tank Thickness |
|
|
1991 - 1992
Jeep Comanche |
2.5L 150ci In-Line 4, 4.0L 242ci In-Line 6 |
|
|
2 1/8" |
2 3/8" |
|
|
1991 - 2001
Jeep Cherokee |
2.5L 150ci In-Line 4, 4.0L 242ci In-Line 6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Will Fit these Vehicles as an Open System
Conversion |
|
|
|
|
|
|
|
|
|
|
|
|
Application |
Engines |
|
|
|
|
|
|
1984 - 1990
Jeep Cherokee |
2.8L 173ci V6. 4.0L 242ci In-Line 6 |
|
|
|
|
|
|
1987 - 1990
Jeep Comanche |
4.0L 242ci In-Line 6 |
|
|
|
|
|
|
1984 - 1990
Jeep Wagoneer |
2.8L 173ci V6. 4.0L 242ci In-Line 6, 4.6L 282ci In-Line 6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
