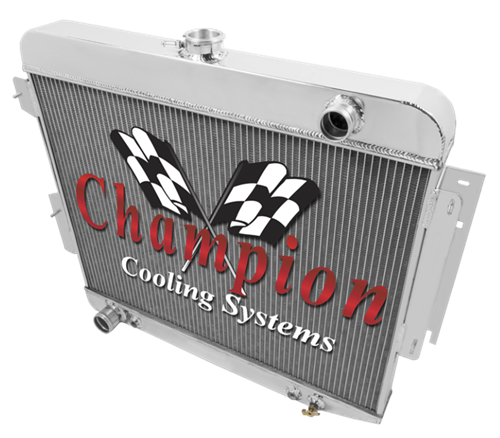

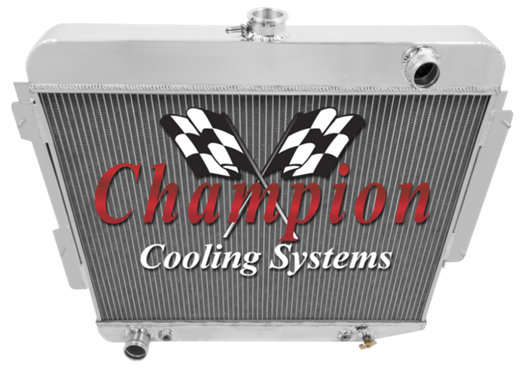

CORE DIM (H x W)

OVERALL (H x W)

HOSE LOCATIONS

HOSE FITTINGS

Fill Neck

TRANS COOLER

BRACKETS

MOUNTING TYPE

Shroud Mount Width

18 1/8 x 25 7/8

24 5/8 x 30

In - Passenger, Out - Driver

In - 1 1/2, Out - 1 3/4

Yes

1/8-27 NPT

28 3/8"

Bracket Mount

27 5/8"

APPLICATION

ENGINES

3 ROW CORE THICKNESS

3 ROW TANK THICKNESS

1966 - 1969 Dodge Charger Base

5.9L 361ci BB V8, 6.3L 383ci BB V8, 7.0L 426ci BB V8

2 1/4"

2 1/2"

1967 - 1969 Dodge Charger R/T

6.3L 383ci BB V8, 7.0L 426ci BB V8, 7.2L 440ci BB V8

1969 Dodge Charger 500

6.3L 383ci BB V8, 7.0L 426ci BB V8, 7.2L 440ci BB V8

4 ROW CORE THICKNESS

4 ROW TANK THICKNESS

1969 Dodge Charger Daytona

7.0L 426ci BB V8, 7.2L 440ci BB V8

2 3/4"

3 1/8"

1969 Dodge Charger SE

6.3L 383ci BB V8, 7.0L 426ci BB V8, 7.2L 440ci BB V8

NOTE: Verify Shroud Mount Width Before Ordering
