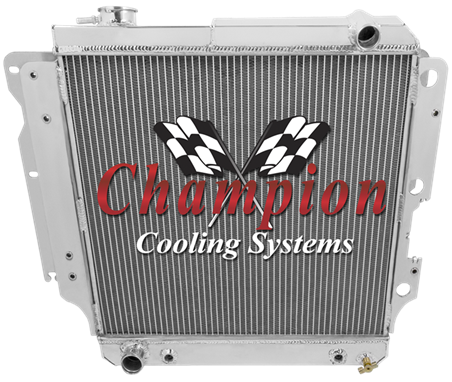

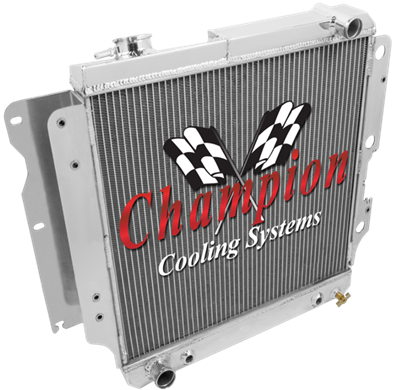

CORE DIM (H x W) |
OVERALL (H x W) |
HOSE LOCATIONS |
HOSE FITTINGS |
TRANS COOLER |
Fill Neck |
MOUNTING TYPE |
BRACKET SPECS |
|
| |
18 1/2 x 20 |
23 1/2 x 25 1/2 |
In - Passenger, Out - Driver |
In - 1 1/4, Out - 1 1/2 |
5/8-18 Straight Thread, Inverted Flare |
Yes |
Bracket Mount |
Vert - 13 1/4, Horizontal - 24 3/8 |
|
| |
|
|
|
|
|
|
|
|
|
| |
APPLICATION |
ENGINES |
|
|
|
3 ROW CORE THICKNESS |
3 ROW TANK THICKNESS |
|
| |
1987 - 2006
Jeep Wrangler YJ |
2.4 148 L4, 4.0 242 L6, 4.2 258 L6 |
|
|
|
2 1/4" |
2 1/2" |
|
|
1997 - 2004
Jeep Wrangler |
2.4 148 L4, 4.0 242 L6 |
|
|
|
|
|
|
2006 Jeep
TJ |
2.4 148 L4, 4.0 242 L6 |
|
|
2 ROW CORE THICKNESS |
2 ROW TANK THICKNESS |
|
|
|
1 1/2" |
2 1/4" |
|
|
Oil cooler not compatible with quick
disconnects. Includes barbed oil cooler fittings. |
|
|
|
|
|
|
4 ROW CORE THICKNESS |
4 ROW TANK THICKNESS |
|
|
2 3/4" |
3 1/8" |
|
|
|
|
|
|
|
|
|
|
|
|
|
