CORE DIM (H x W) |
OVERALL (H x W) |
HOSE LOCATIONS |
HOSE FITTINGS |
FILL NECK |
TRANS COOLER |
MOUNTING TYPE |
|
| |
18 x 18 1/2 |
24" x 22 5/8" |
In - Driver, Out - Passenger |
In - 1 1/2 Out - 1 3/4 |
Yes |
1/2-20 Straight Thread,
Inverted Flare |
OEM Mount |
|
| |
|
|
|
|
|
|
|
|
| |
APPLICATION |
|
|
|
3 ROW CORE THICKNESS |
3 ROW TANK THICKNESS |
|
|

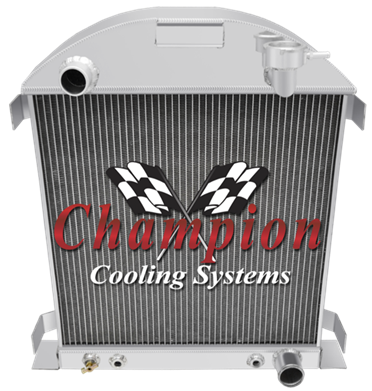

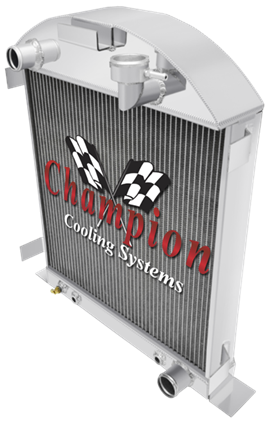

1928- 1929
Ford Model A W/ Chevy Configuration |
|
B Core 2 1/2" |
Upper - 4 1/4", Lower - 3" |
|
|
|
2 ROW CORE THICKNESS |
2 ROW TANK THICKNESS |
|
|
1 1/2" |
Upper - 4 1/4", Lower - 1 7/8" |
|
|
|
4 ROW CORE THICKNESS |
4 ROW TANK THICKNESS |
|
|
2 3/4" |
Upper - 4 5/16", Lower - 3 1/8" |
|
|
|
|
|
|
|
|
|
|
