CORE DIM (H x W) |
OVERALL (H x W) |
HOSE LOCATIONS |
HOSE FITTINGS |
FILL NECK |
TRANS COOLER |
MOUNTING TYPE |
|
18" x 18-1/2" |
24" x 22 5/8" |
In - Passenger, Out - Driver |
In - 1 1/2, Out - 1 3/4 |
Yes |
1/8-27 NPT |
OEM Mount |
|
|
APPLICATION |
|
3 ROW CORE THICKNESS |
3 ROW TANK THICKNESS |
|
1928 - 1929

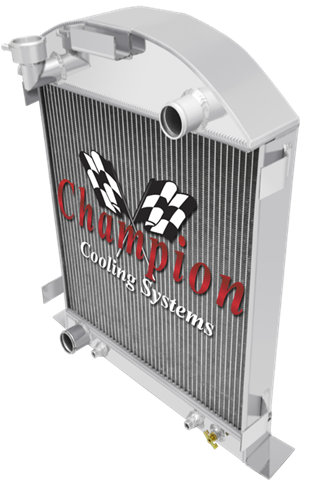

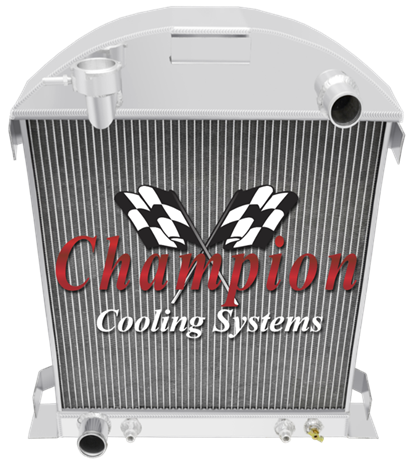

Ford Model A W/ Ford Configuration |
|
B Core 2 1/2" |
Upper - 4 1/4" , Lower - 3" |
|
|
2 ROW CORE THICKNESS |
2 ROW TANK THICKNESS |
|
1 1/2" |
Upper - 4 1/4", Lower - 1 7/8" |
|
|
4 ROW CORE THICKNESS |
4 ROW TANK THICKNESS |
|
2 3/4" |
Upper - 4 3/8, Lower - 3 1/8" |
|
|
|
|
|
|
|
|
|
