CORE DIM (H x W)
OVERALL (H x W)
HOSE LOCATIONS
HOSE FITTINGS
FILL NECK
TRANS COOLER
MOUNTING TYPE
20 x 17 1/4
25 1/2 x 19 7/8
In - Dual, Out - Dual
In - 1 1/4, Out - 1 3/4
Yes
1/8-27 NPT
Mount Flanges
APPLICATION
ENGINES
3 ROW CORE THICKNESS
3 ROW TANK THICKNESS

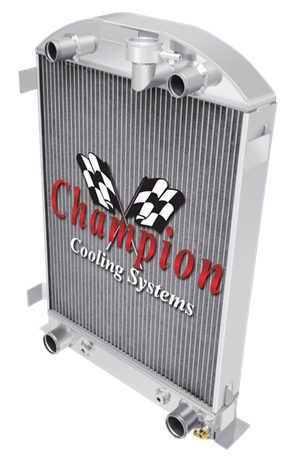

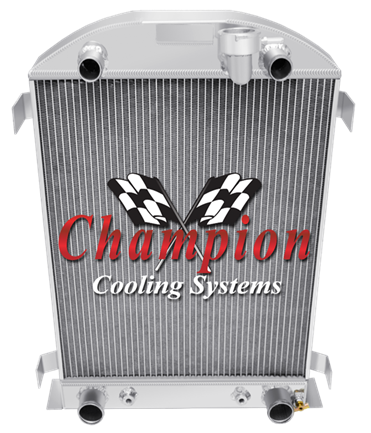

1932 Ford High Boy
with Flathead Configuration
B Core 2 1/2"
3"

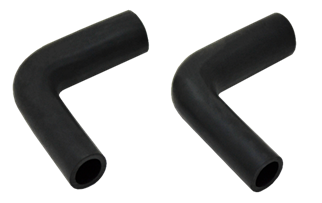

Includes 1 1/4" to 1 3/4" Hoses for a 21 Stud Motor.
