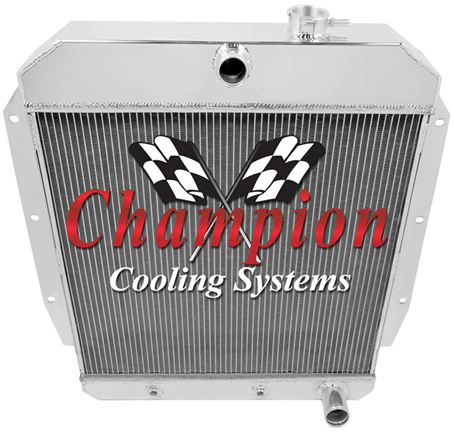

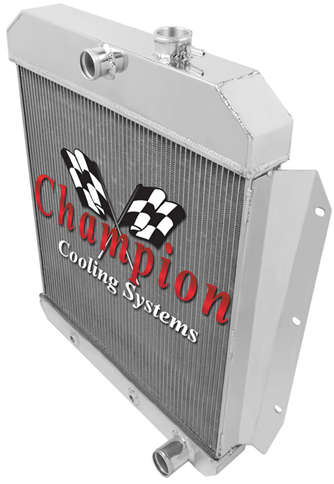

CORE DIM (H x W) |
OVERALL (H x W) |
HOSE LOCATIONS |
HOSE FITTINGS |
TRANS COOLER |
FILL NECK |
MOUNTING TYPE |
BRACKET SPECS |
|
| |
19 3/8 x 21 3/4 |
26 3/4 x 26 1/2 |
In - Center, Out - Passenger |
In-1 1/2, Out-1 3/4 |
1/2-20 Straight Thread,
Inverted Flare |
Yes |
Bracket Mount |
Vert - 13 3/4, Horizontal - 25 3/4 |
|
| |
|
|
|
|
|
|
|
|
|
| |
Application |
Engines |
|
|
|
3 ROW CORE THICKNESS |
3 ROW TANK THICKNESS |
|
| |
1955 - 1959 Chevrolet Truck |
3.8L 235ci L6, 4.3L 261ci L6, |
|
|
|
2 1/4" |
3" |
|
| |
4.3L 265ci V8, 4.6L 283ci V8, |
|
|
|
|
|
|
| |
5.3L 322ci V8, 5.7L 348ci V8 |
|
|
|
|
|
|
|
1955 - 1959 Chevrolet Suburban |
3.8L 235ci L6, 4.3L 265ci V8, |
|
|
4.6L 283ci V8, 5.3L 324ci V8 |
|
|
1959
Chevrolet 3B |
3.8L 235ci L6, 4.6L 283ci V8 |
|
|
1959
Chevrolet 3C |
3.8L 235ci L6, 4.6L 283ci V8 |
|
|
1959
Chevrolet 3D |
3.8L 235ci L6, 4.6L 283ci V8 |
|
|
1959
Chevrolet 3E |
3.8L 235ci L6, 4.6L 283ci V8 |
|
|
1959
Chevrolet 3F |
3.8L 235ci L6, 4.6L 283ci V8 |
|
|
1959
Chevrolet 3G |
3.8L 235ci L6, 4.6L 283ci V8 |
|
|
|
|
|
|
|
|
|
|
|
|
