CORE DIM (H x W)

OVERALL (H x W)

Hose Locations

Hose Fittings

Fill Neck

Trans Cooler

Mounting Type

20 1/8 x 23 7/8

26 3/4 x 27 3/8

In - Center, Out - Passenger

In - 1 1/2", Out - 1 3/4"

Yes

1/2-20 Straight Thread, Inverted Flare

Bracket

Application

Engines

3 Row Core Thickness

3 Row Tank Thickness

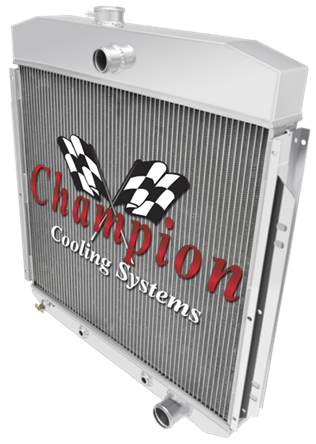

1957 - 1960 Ford F-100

w/ Chevy Configuration

2 1/4"

Upper - 3 1/8", Lower 2 5/8"

2 Row Core Thickness

2 Row Tank Thickness

1 5/8"

Upper - 3 1/8", Lower 2 5/8"

4 Row Core Thickness

4 Row Tank Thickness

2 3/4"

3 1/8"
