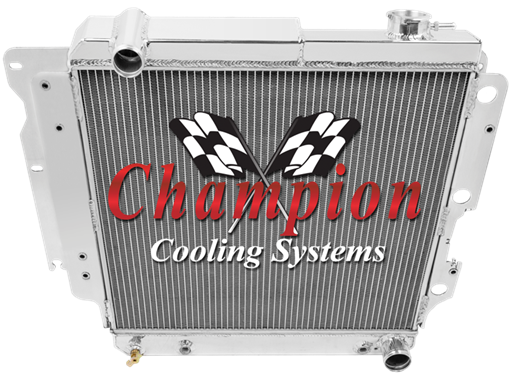

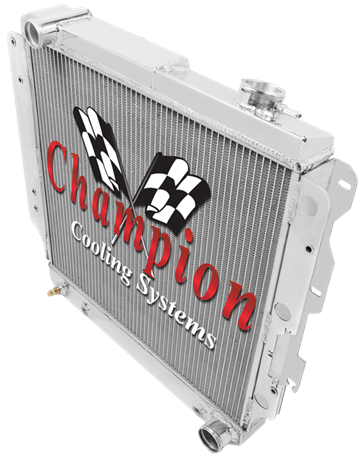

CORE DIM (H x W) |
OVERALL (H x
W) |
HOSE LOCATIONS |
HOSE FITTINGS |
TRANS COOLER |
FILL NECK |
MOUNTING TYPE |
BRACKET SPECS |
| |
18 1/2 x 20 1/8 |
23 3/8 x 25 3/4 |
In - Driver, Out - Passenger |
In - 1 1/2, Out - 1 3/4 |
1/2-20 Straight Thread,
Inverted Flare |
Yes |
Bracket Mount |
Vert - 13 3/8, Horizontal - 24 1/2 |
| |
|
|
|
|
|
|
|
|
| |
APPLICATION |
ENGINES |
|
|
|
3 ROW CORE THICKNESS |
3 ROW TANK THICKNESS |
| |
1987 - 2006
Jeep Wrangler YJ |
2.4 148 L4, 4.0 242 L6, 4.2 258 L6 |
|
|
|
2 1/4" |
|
| |
1997 - 2004
Jeep Wrangler |
2.4 148 L4, 4.0 242 L6 |
|
|
|
|
|
| |
2006 Jeep
TJ |
2.4 148 L4, 4.0 242 L6 |
|
|
|
|
|
| |
Notes: For Chevy V8 Conversion |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
