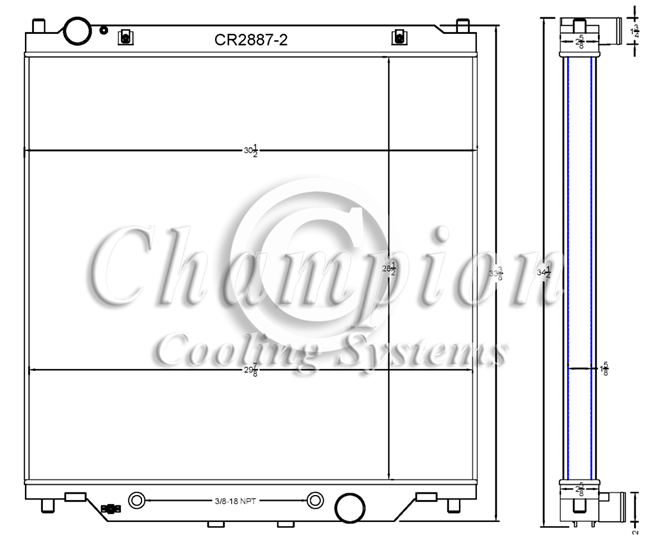

Core Dim (H x W) |
Overall (H x W) |
Hose Locations |
Hose Fittings |
Fill Neck |
Trans Cooler |
Mounting Specs |
Mounting Type |
|
|
28 1/2" x 29 7/8" |
34 1/4" x 30
1/2" |
In - Driver, Out -
Passenger |
In - 1 3/4",
Out - 2" |
No |
3/8-18 NPT |
N/A |
Saddle Mount |
|
|
|
|
|
|
|
|
|
|
|
|
Application |
Engines |
|
|
|
2 Row Core Thickness |
2 Row Tank Thickness |
|
|
2005 - 2007 Ford F-250 Super Duty |
6.0L 636ci V8, 6.8L 415ci V10 |
|
|
|
1 5/8" |
2 5/8" |
|
|
2005 - 2007 Ford F-350 Super Duty |
6.0L 636ci V8, 6.8L 415ci V10 |
|
|
|
|
|
|
|
2005 - 2007 Ford F-450 Super Duty |
6.0L 636ci V8, 6.8L
415ci V10 |
|
|
|
|
|
|
2005 - 2007 Ford F-550 Super Duty |
6.0L 636ci V8, 6.8L
415ci V10 |
|
|
|
|
|
|
2011 - 2018 Ford F53 |
6.8L 415ci V10 |
|
|
|
|
|
|
2011 - 2018 Ford F59 |
6.8L 415ci V10 |
|
|
|
|
|
|
NOTE: Radiator comes with 3/8-18
NPT to 1/2" tube quick Disconnect adapters |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
