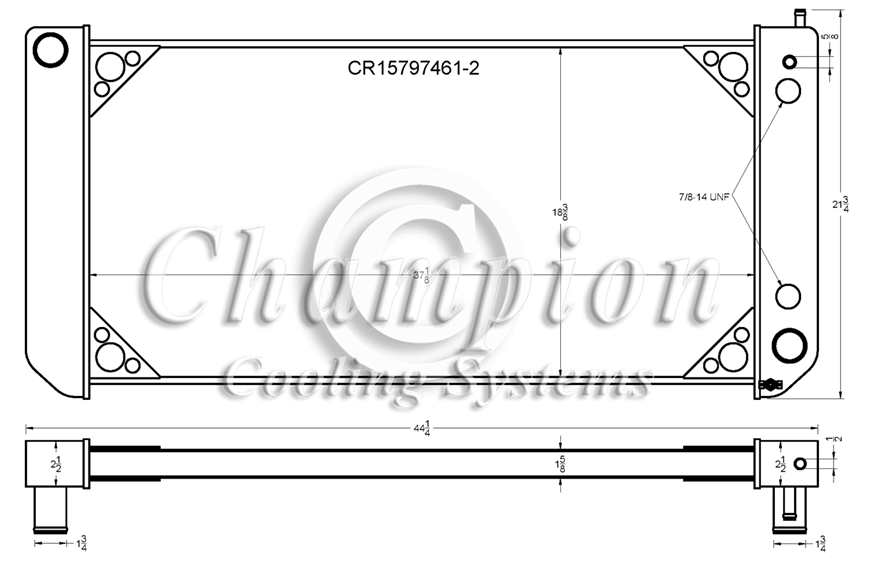

Core Dim (H x W) |
Overall (H x W) |
Hose Locations |
Hose Fittings |
Fill Neck |
Trans Cooler |
Mounting Specs |
Mounting Type |
|
18 3/8" x 37 1/8" |
21 3/4" x 44
1/4" |
In- Driver, Out -
Passenger |
In - 1 3/4",
Out - 1 3/4" |
No |
7/8-14 UNF |
N/A |
Saddle Mount |
|
|
|
|
|
|
|
|
|
|
Application |
Engines |
|
|
|
2 Row Core Thickness |
2 Row Tank Thickness |
|
2003 - 2007 Chevrolet C4500 Kodiak |
6.6L 403ci V8, 8.1L
496 V8 |
|
|
|
1 5/8" |
2 1/2" |
|
2003 - 2007 Chevrolet C5500 Kodiak |
6.6L 403ci V8, 8.1L
496 V8 |
|
|
|
|
|
|
2003 - 2007 Chevrolet C6500 Kodiak |
7.2L 441ci L6, 7.8L
475ci L6 |
|
|
|
|
|
|
8.1L 496ci V8 |
|
|
|
|
|
|
2003 - 2007 Chevrolet C7500 Kodiak |
7.2L 441ci L6, 7.8L
475ci L6 |
|
|
|
|
|
|
8.1L 496ci V8 |
|
|
|
|
|
|
2003 - 2007 Chevrolet C8500 |
7.2L 441ci L6, 7.8L
475ci L6 |
|
|
|
|
|
|
8.1L 496ci V8 |
|
|
|
|
|
|
2003 - 2007
GMC C4500 Topkick |
6.6L 403ci V8, 8.1L
496 V8 |
|
|
|
|
|
|
2003 - 2007 GMC C5500 Topkick |
6.6L 403ci V8, 8.1L
496 V8 |
|
|
|
|
|
|
2003 - 2007 GMC C6500 Topkick |
7.2L 441ci L6, 7.8L
475ci L6 |
|
|
|
|
|
|
8.1L 496ci V8 |
|
|
|
|
|
|
2003 - 2007 GMC C7500 Topkick |
7.2L 441ci L6, 7.8L
475ci L6 |
|
|
|
|
|
|
8.1L 496ci V8 |
|
|
|
|
|
|
2003 - 2007 GMC C8500 Topkick |
7.2L 441ci L6, 7.8L
475ci L6 |
|
|
|
|
|
|
8.1L 496ci V8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
